Aftercare Data Model

​

Introduction

When using our APIs, Aftercare can store your survey data to create our own internal model of the survey.

This allows us to give you a rich set of analytics over your survey responses within the Aftercare platform, including automatic coding and summarization.

​

Data Model

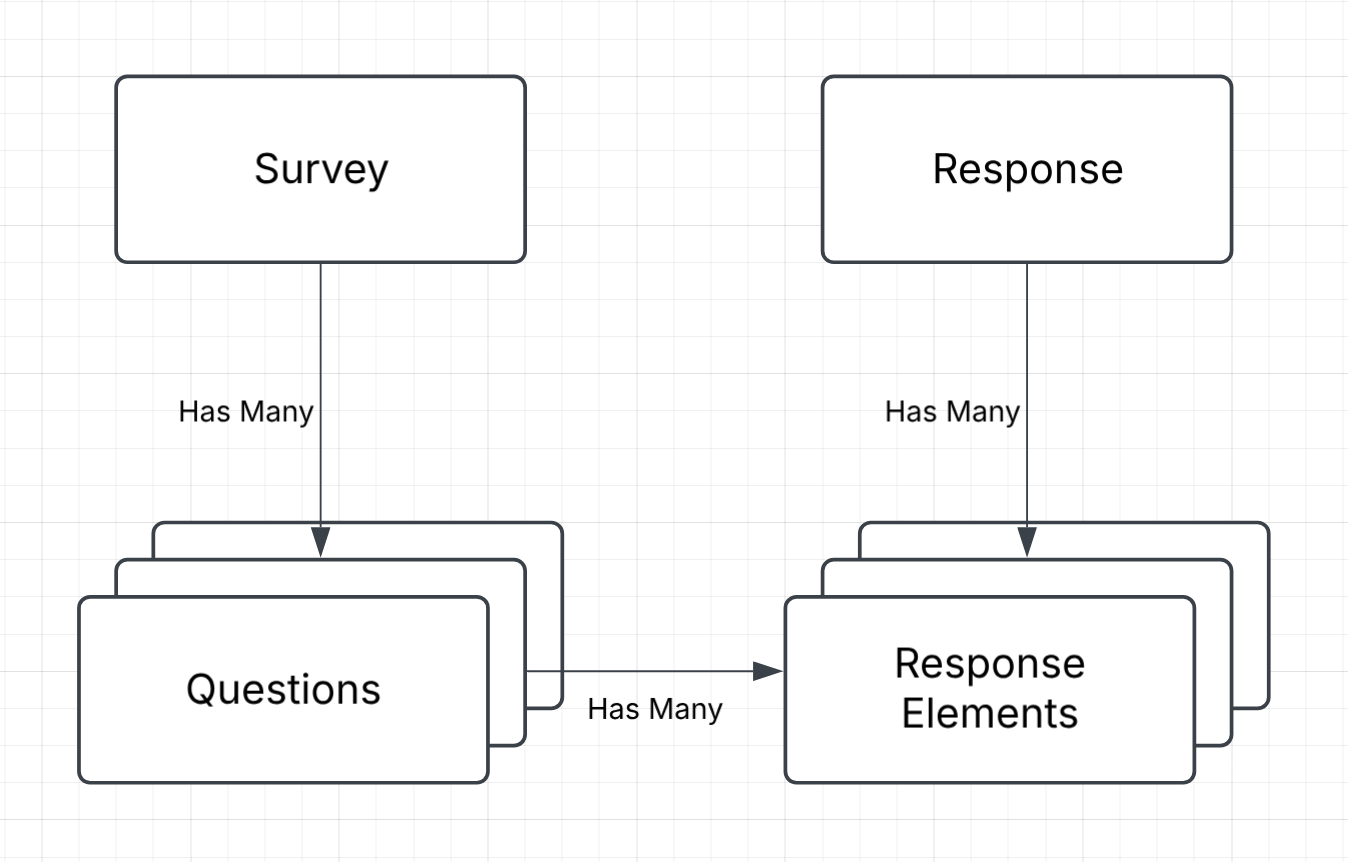

This is how the data is modeled in Aftercare:

• Survey: Contains the survey name and description. Is made up of many questions.

• Question: Contains the question text and many responseElements - the answers provided by respondents for this particular question.

• Response: Is made up of all the responseElements for a single respondent’s response to a survey.

• ResponseElement: One question/answer pair from a respondent’s response to a survey.

By connecting every question-answer pair (a responseElement) to a particular question within a survey, we can analyze the themes and trends across your survey responses.

​

Analytics

If Aftercare can build an internal data model over your survey responses, we will be able to provide analytics to help you understand your data.

We currently provide coding/categorization over all responses for each question. We’ll be developing more analytics features in the near future, so stay tuned!

​

Coding:

We use AI to automatically code all your responses. Let us handle generating the code frame or you can provide one yourself.

We categorize and subcategorize as needed to generate a theme hierarchy for your responses. We can perform the coding in real-time as responses come in or at the end when all the responses have been completed.

For example:

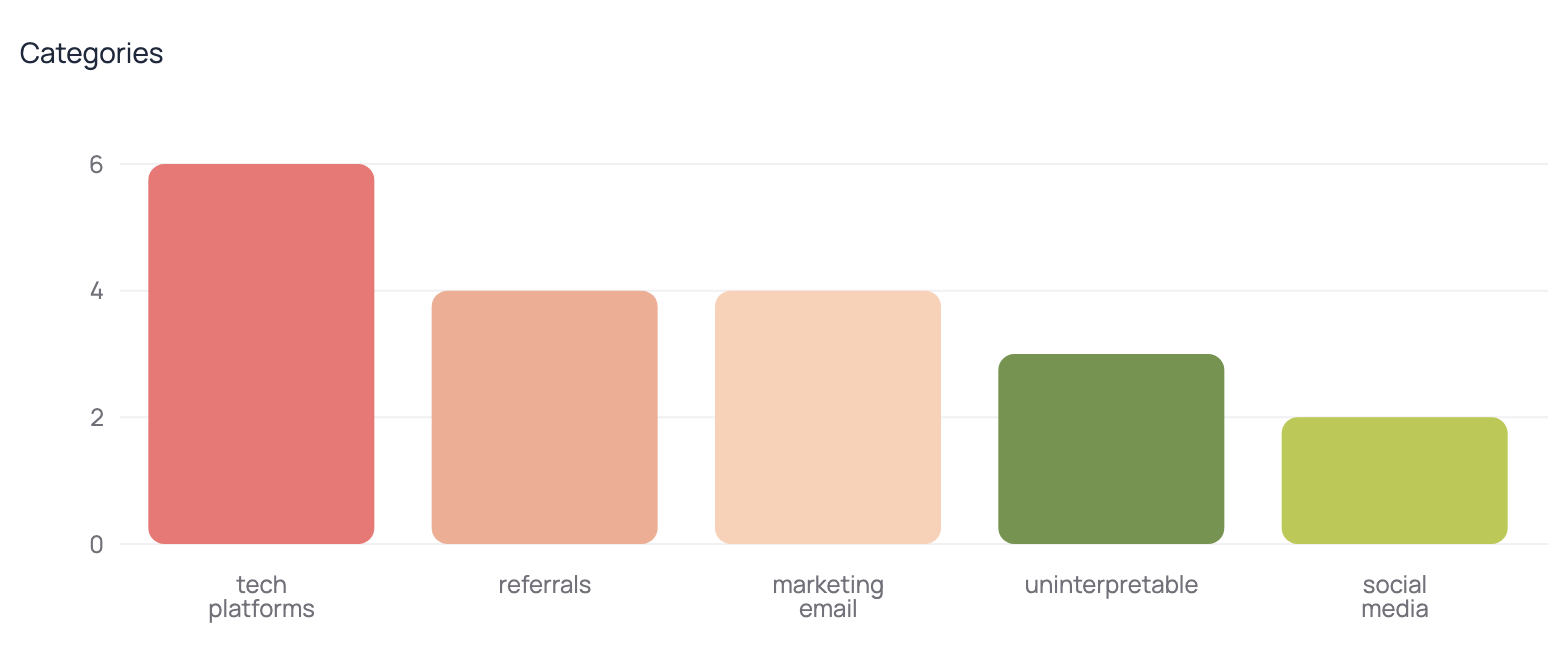

• Level 1:

  Top-level themes for responses to the question: 'How did you hear about us?'

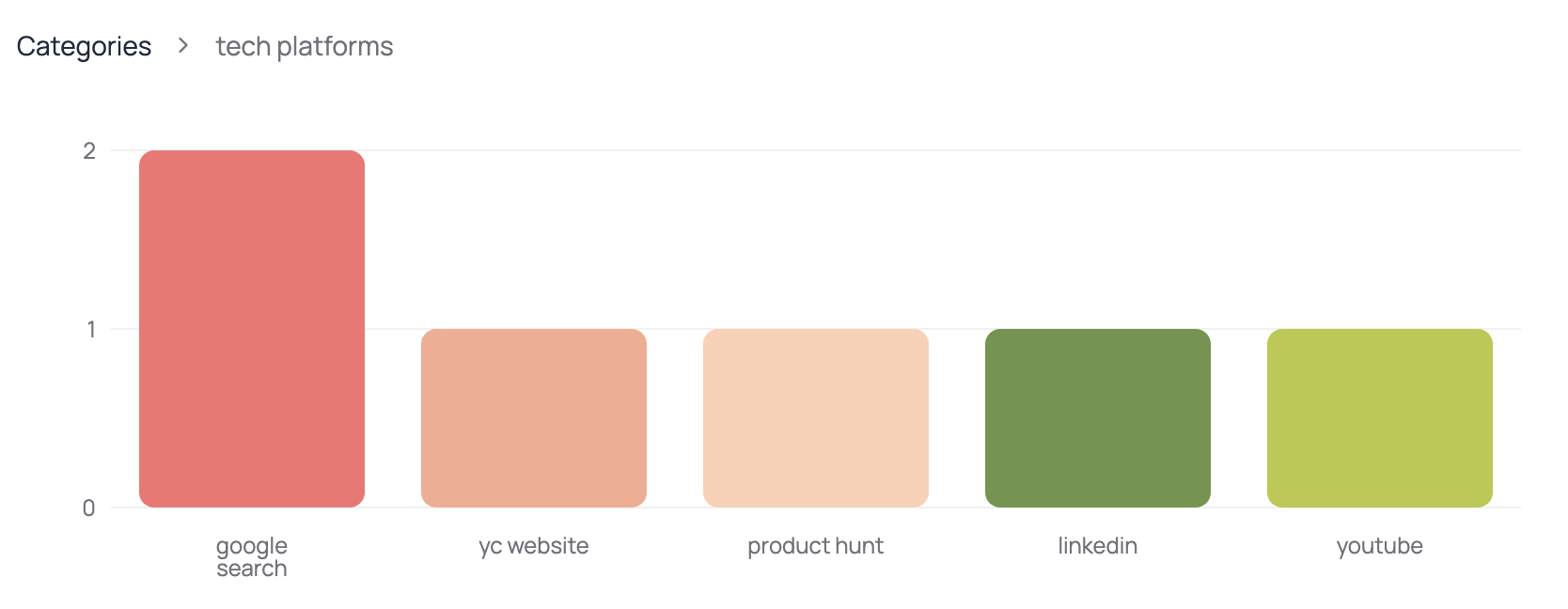

• Level 2:

  Sub-themes for responses under the 'Tech Platforms' category

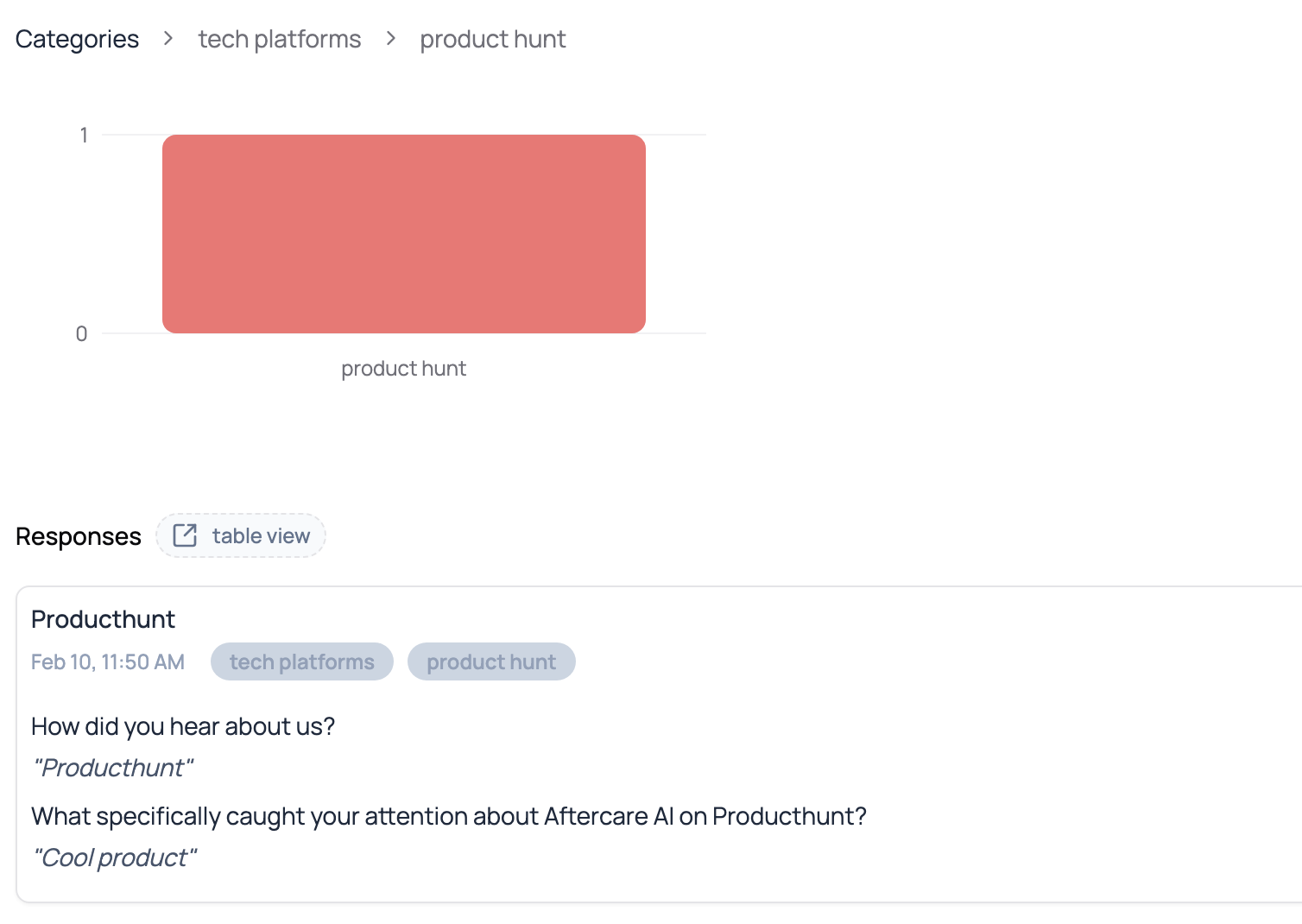

• Level 3:

  Responses under the 'Product Hunt' category

​

Identifiers

To allow Aftercare to model your survey data, you’ll need to provide a few piece of information that uniquely identify each survey object, what we call identifiers:

• surveyIdentifier: A string that uniquely identifies the survey across your organization. (e.g. “Survey_01”)

• questionIdentifier: A string that uniquely identifies a question for a particular survey. (e.g. “Q1”)

• responseIdentifier: A string that uniquely identifies one respondent’s entire response to a survey. This means that if a respondent answers multiple questions within the same survey, they should all have the same responseIdentifier. (e.g. “7a54b8da-f65d-4946-9c9a-f202e0cc29c8”)

Not all API endpoints require all three identifiers to model your survey data, but you can see the requirements for each endpoint in the API reference.
